Brax Matrix ML10 10″ subwoofer
...
Matrix ML10 Subwoofer
250 mm / 10″ High-End Subwoofer
Brax subwoofers are built without cost constraints for installations where bass quality matters more than budget. German engineering from the team behind Helix, designed for custom enclosures with proper amplification and acoustic integration. These aren’t plug-and-play bass upgrades – they’re reference-grade components that require professional installation and system tuning.
There are subwoofers, and then there’s Brax.
Features

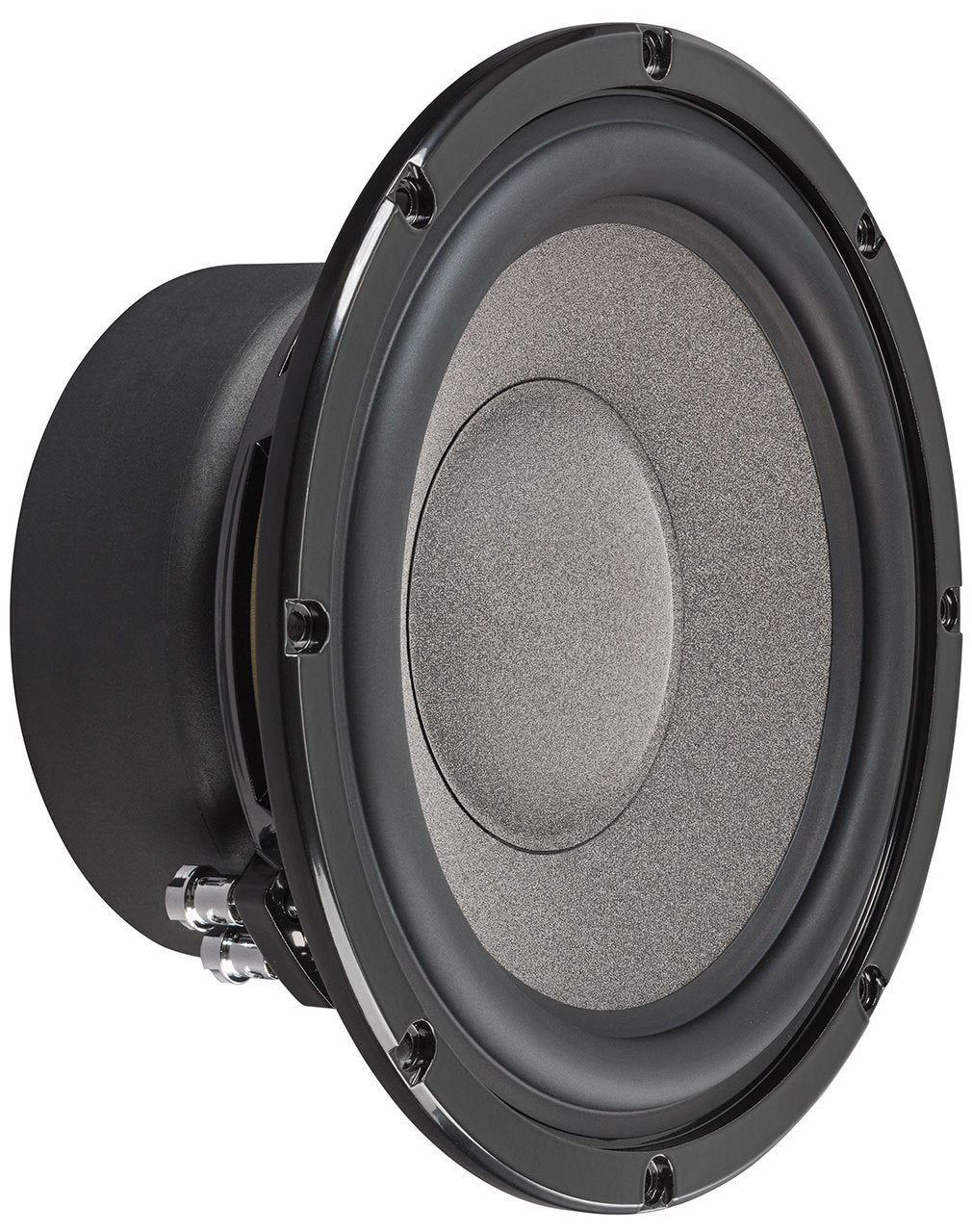

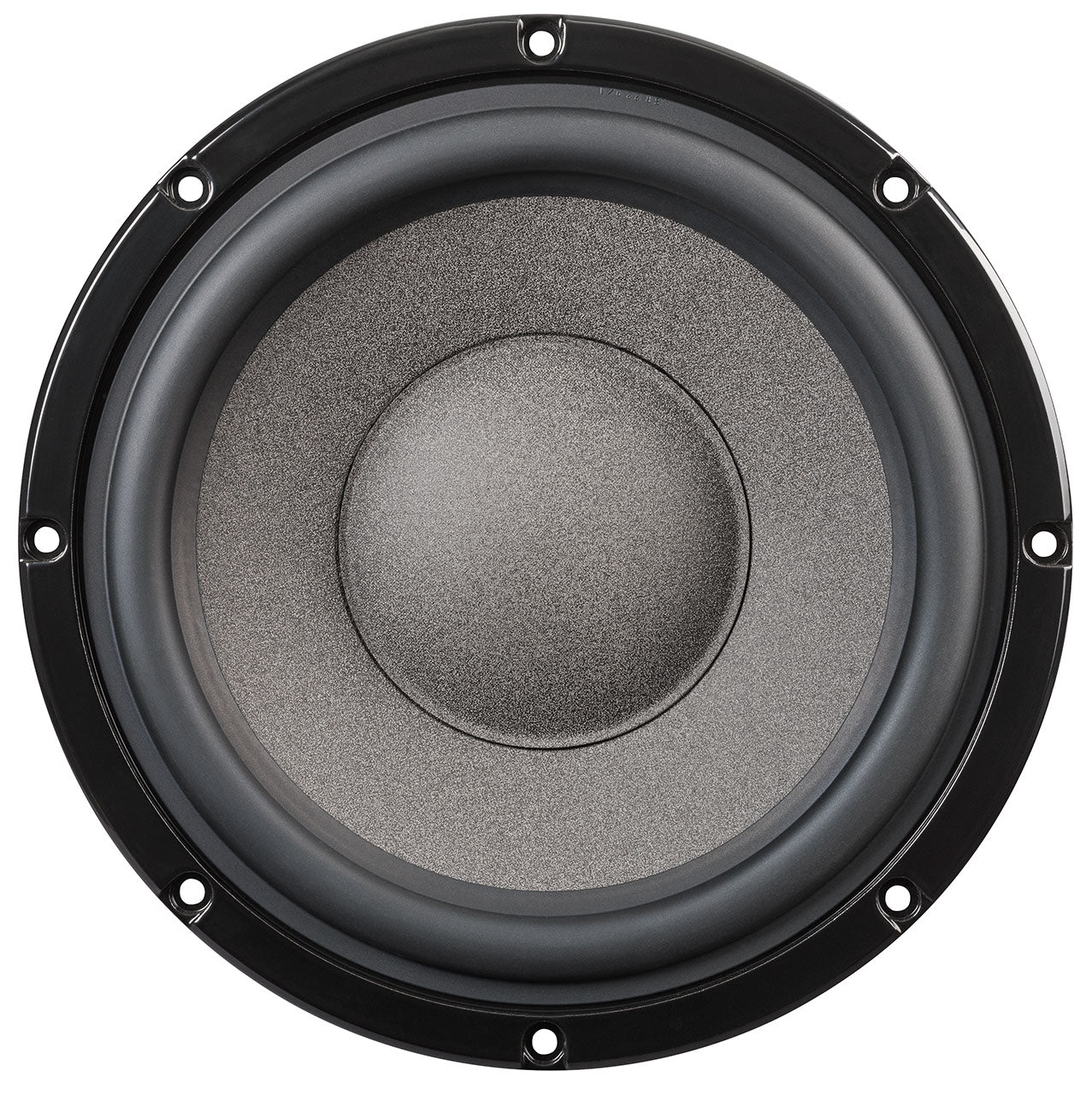

- Exceptional stiff hand-scooped paper cone with unique “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer offers best possible impulse response
- Specially shaped rubber surround for long linear cone excursion
- 2 x 2 ohm dual voice coil with exceptional winding height for high linear excursion and lowest possible distortion

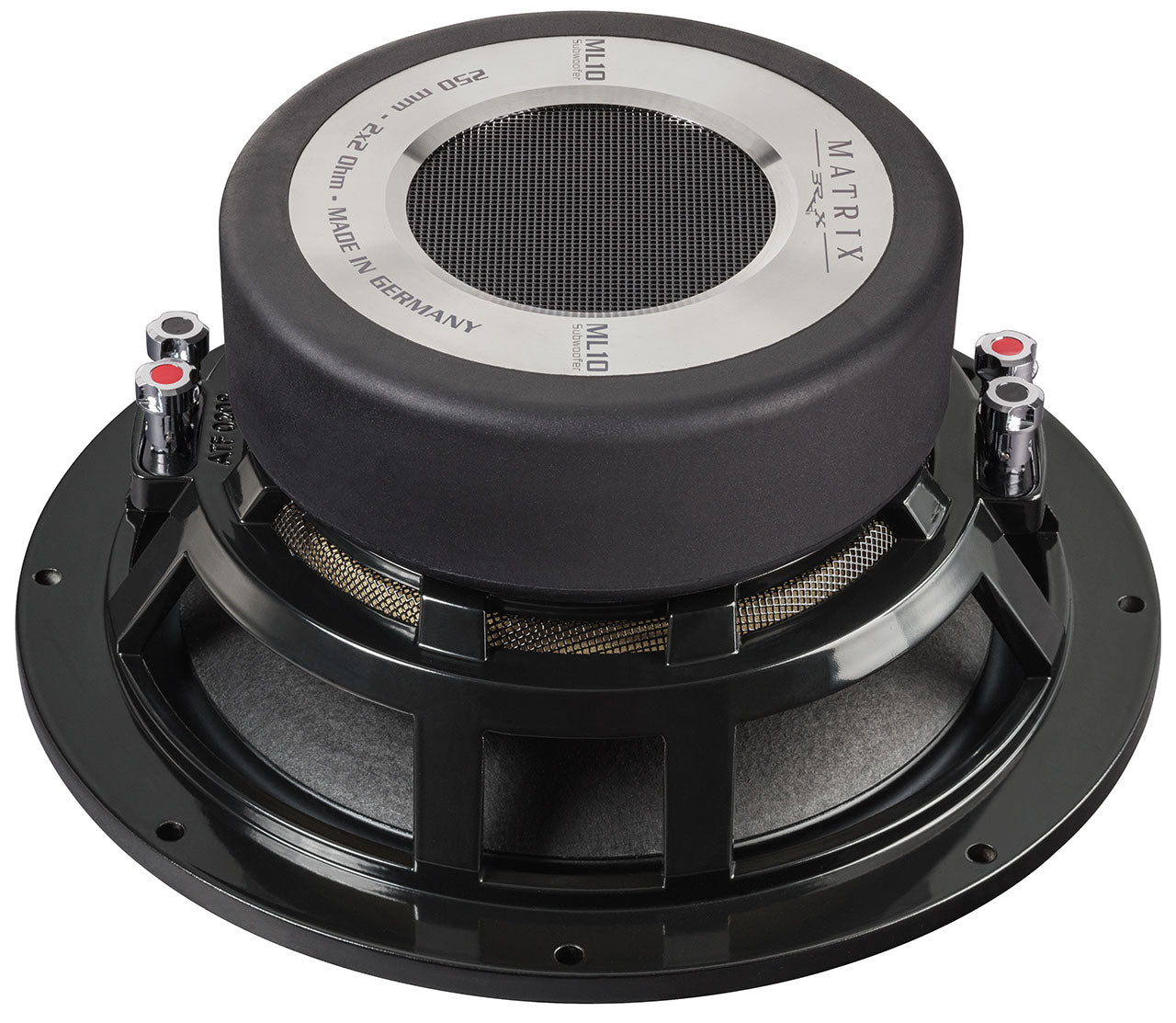

- Optimized voice coil ventilation through large, mesh-protected holes in T-yoke and basket for almost zero compression effects and maximum heat dissipation
- Specially developed, aerodynamically optimized and extremely solid aluminium die-cast basket
- Extremely powerful and precisely machined magnet system for highest magnetic flux linearity

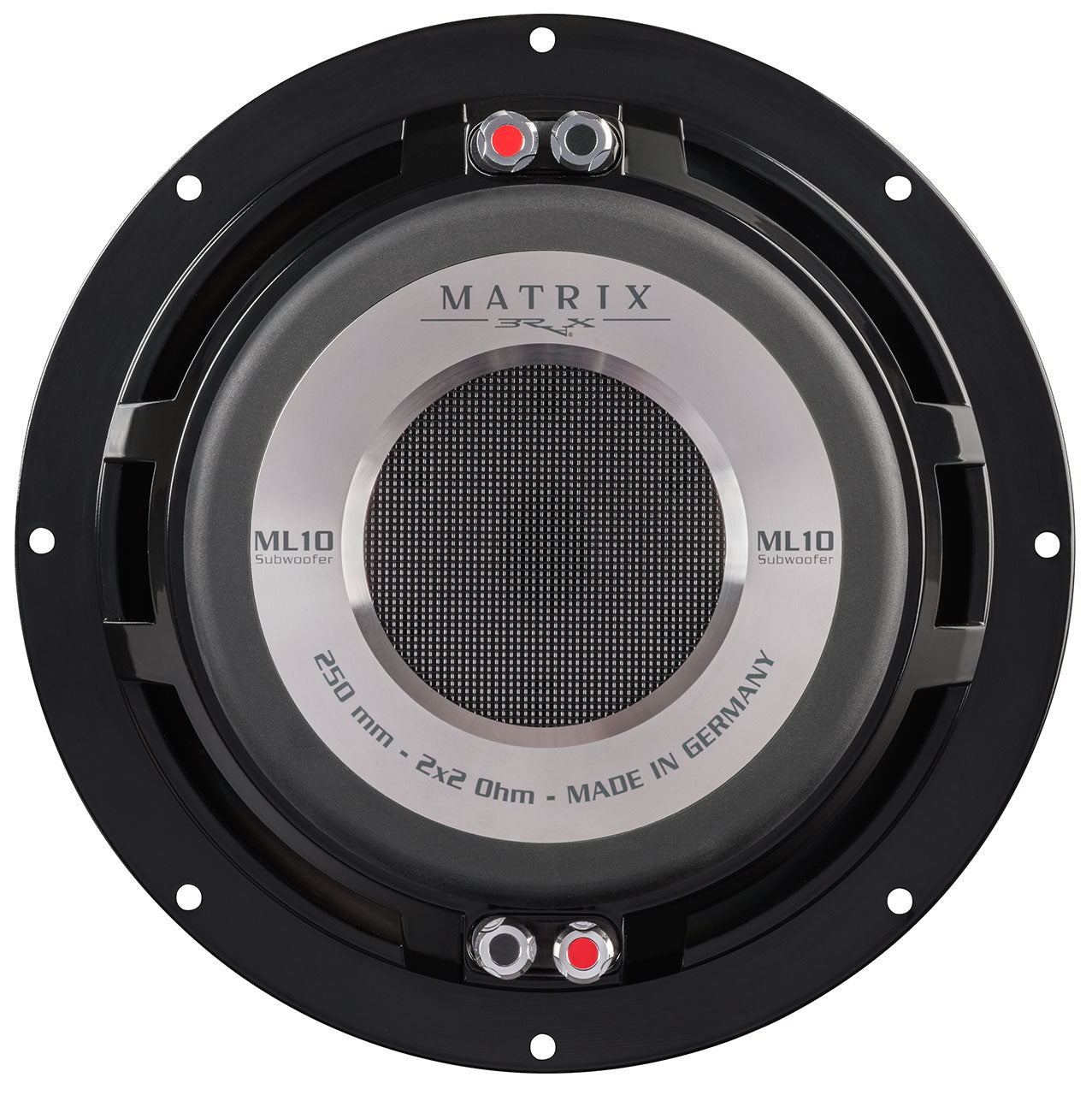

- Massive push-terminals for large wire gauge
Technical data
| Power RMS / max. | 600 / 1200 Watts | |
| Impedance | Z | 2 x 2 Ω |
| DC resistance | Re | 2 x 1.9 Ω |
| Resonance frequency | Fs | 34 Hz |
| Mechanical Q factor | Qms | 7.78 |
| Electrical Q factor | Qes | 0,55 |
| Total Q factor | Qts | 0.51 |
| Compliance | Cms | 265 µm/N |
| Equivalent air volume | Vas | 46 L |
| Force factor | B*I | 11.30 Tm |
| Efficiency 1 W / 1 m | SPL | 87 dB |
| Cone area | Sd | 346 cm² |
| Moving mass | Mms | 83 g |
| Cone material | Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer | |
| Mechanical resistance | Rms | 2,26 kg/s |
| Voice coil diameter | ø | 65 mm / 2.6″ |
| Voice coil winding height | 33 mm / 1.3″ | |
| Max. linear excursion | Xmax | +/- 12.5 mm |
| Outer diameter | ø | 275 mm / 10.8″ |
| Installation diameter | ø | 235 mm / 9.3″ |
| Installation depth | 114 mm / 4.5″ |
