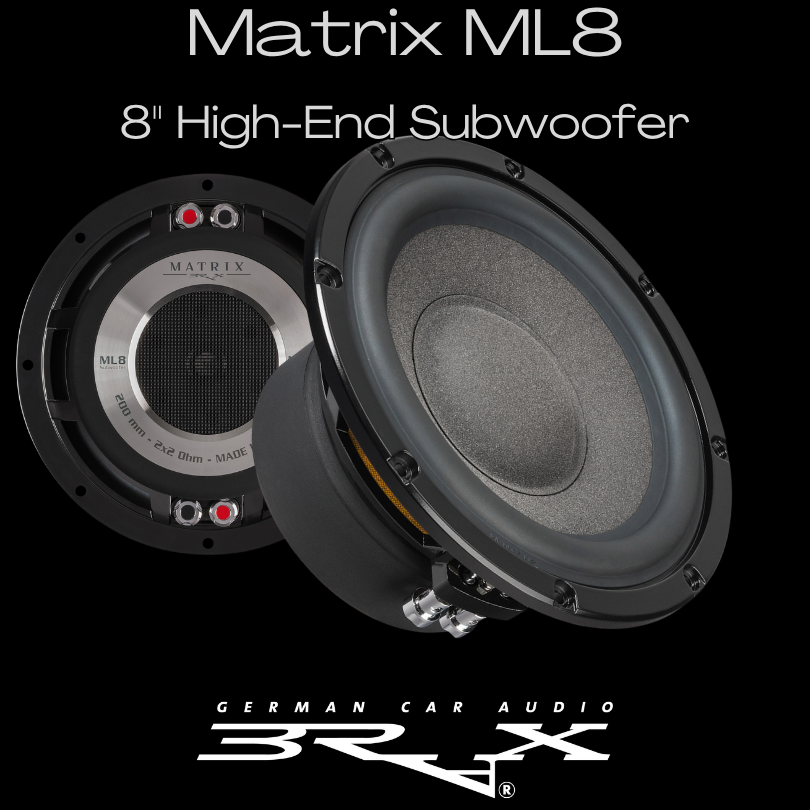

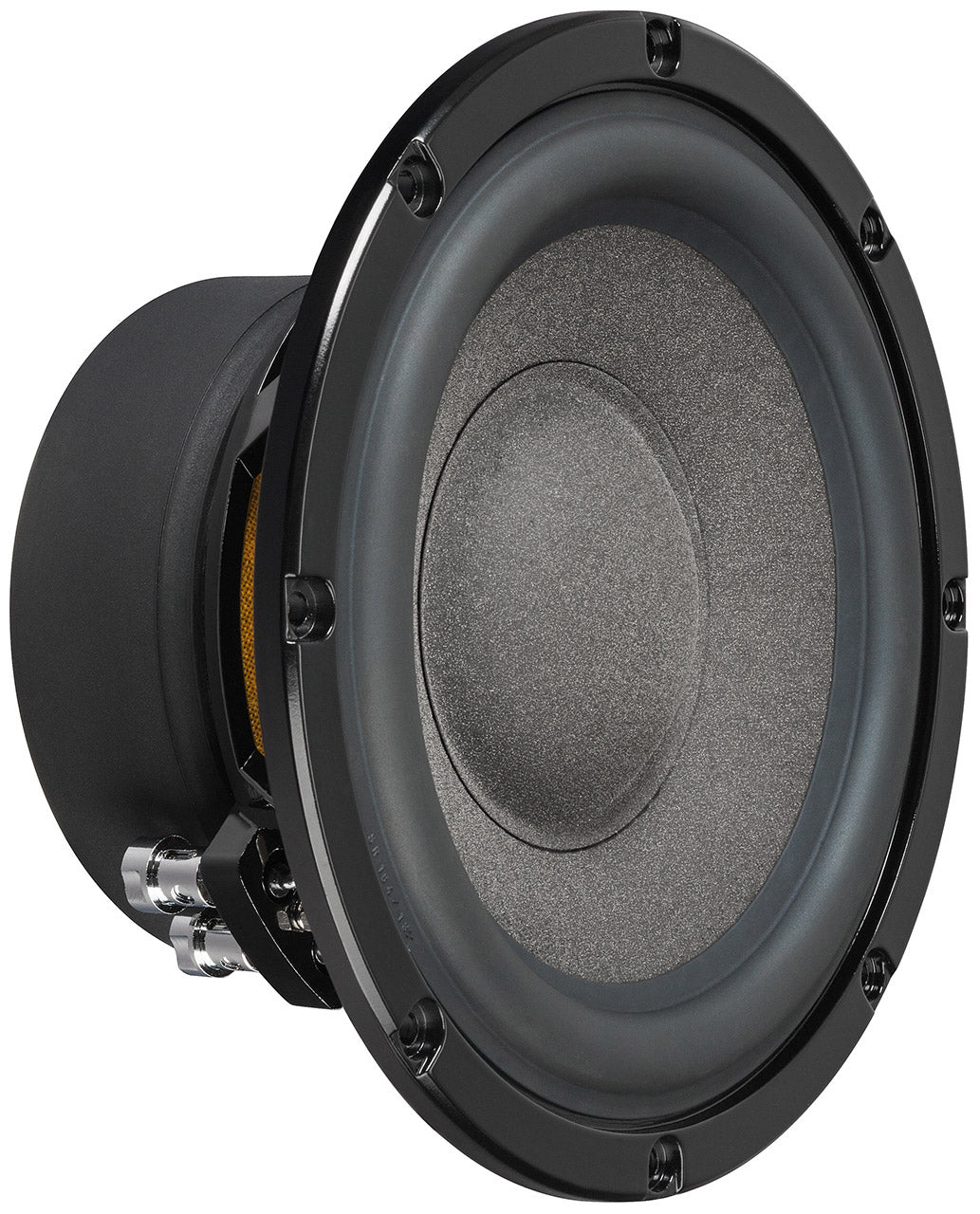

Brax Matrix ML8 8″ subwoofer
...
Matrix ML8
8″ / 200 mm High-End Subwoofer
Precision in perfection!
For years, our BRAX subwoofer has been the benchmark for precision and unconditionally controlled bass reproduction. It was even more demanding to create a BRAX subwoofer that uncompromisingly reproduces deep bass even in the smallest possible enclosures. Each component of this exceptional driver is not only made for dynamics and perfect tonality but is also designed to convert even huge loads of amplifier power into sound pressure without compression.
Features

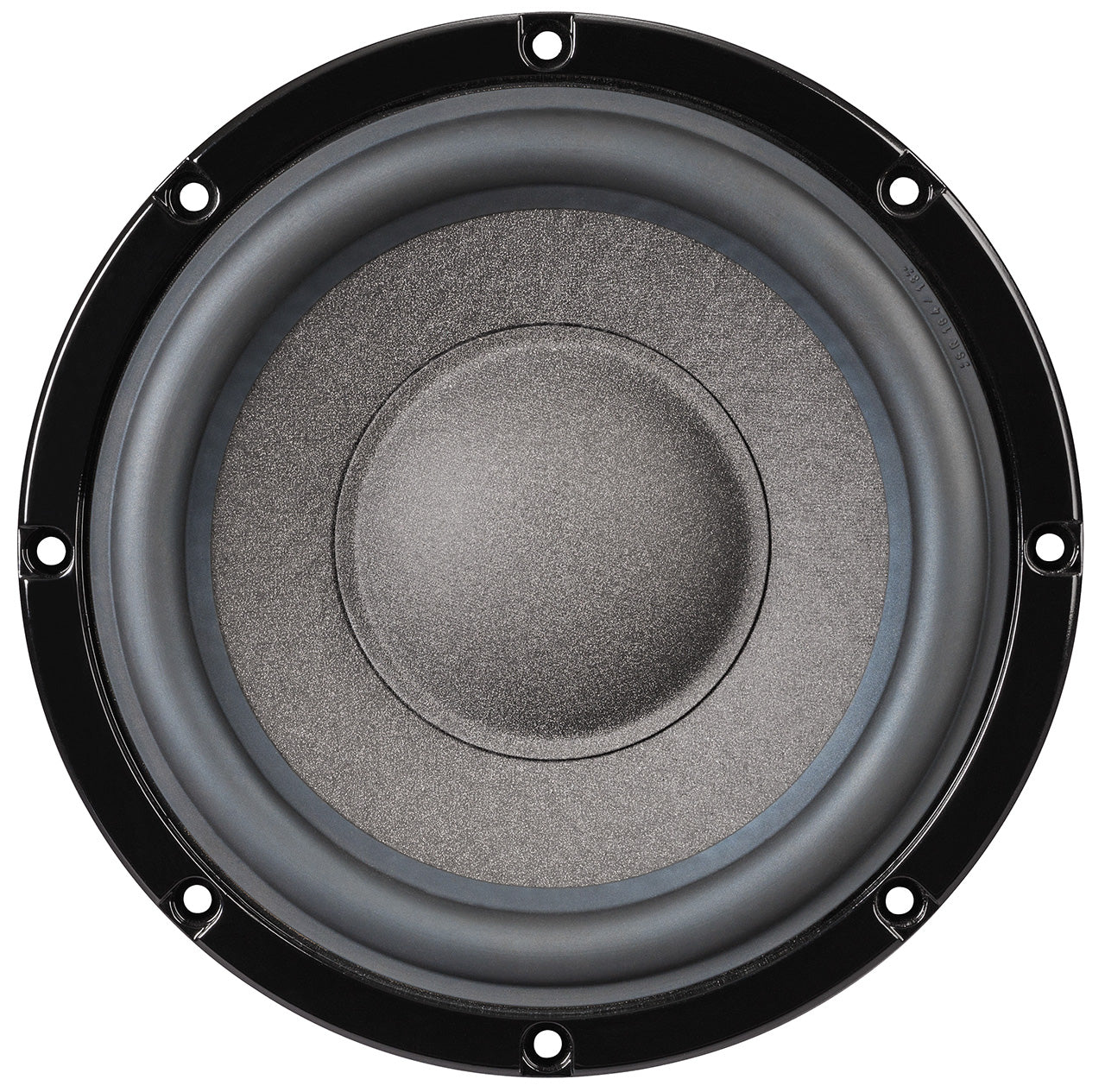

- Exceptional stiff hand-scooped paper cone with unique “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer offers best possible impulse response
- Specially shaped rubber surround for long linear cone excursion
- 2 x 2 Ohms dual voice coil with exceptional winding height for high linear excursion and lowest possible distortion
- Optimized voice coil ventilation through large, mesh-protected holes in T-yoke and basket for almost zero compression effects and maximum heat dissipation
- Specially developed, aerodynamically optimized and extremely solid aluminum diecast basket
- Extremely powerful and precisely machined magnet system for highest magnetic flux linearity

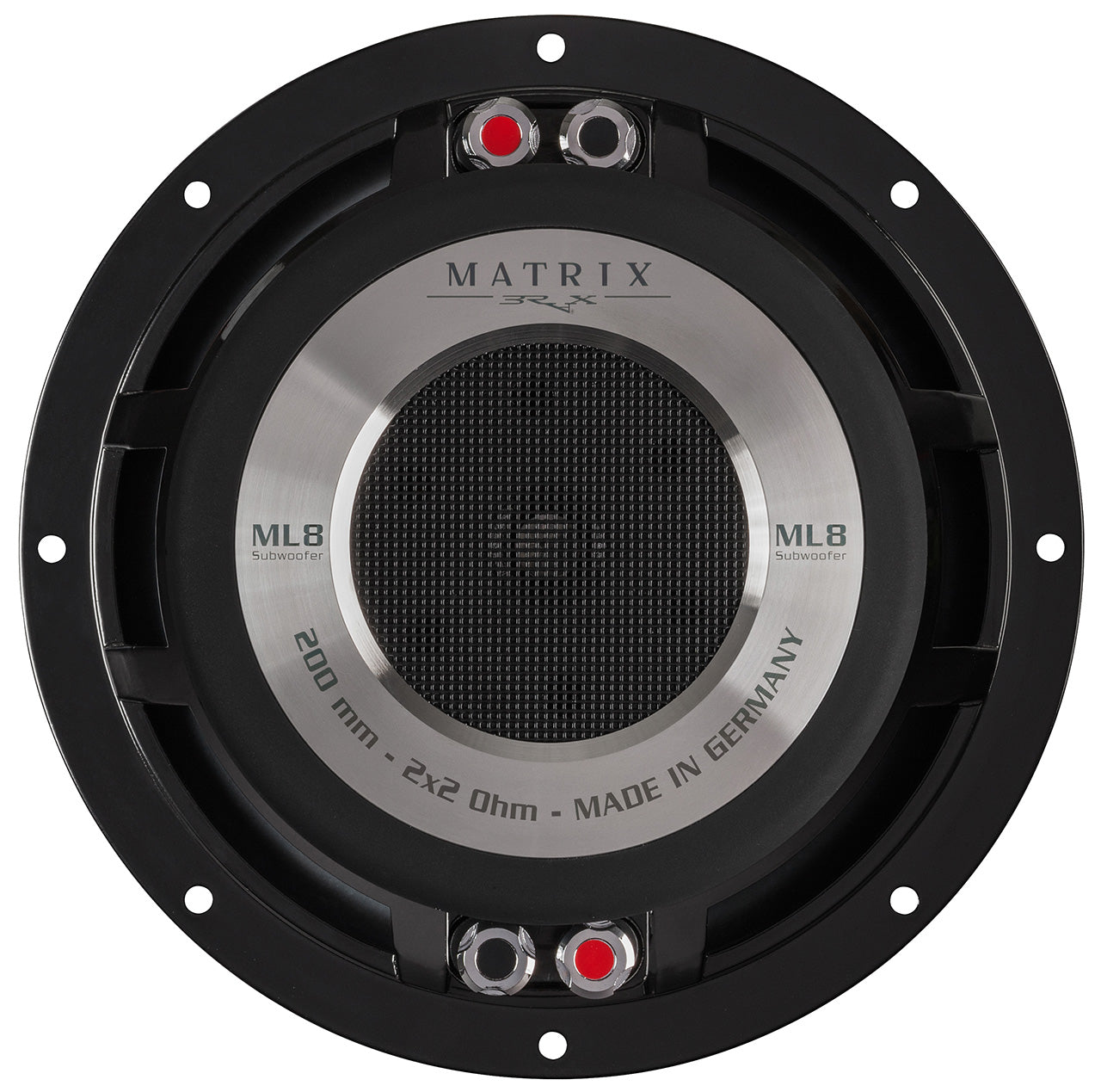

- Massive push-terminals for large wire gauge
Technical data
| Power RMS / max. | 400 / 800 Watt | ||
| Impedance | Z | 2 x 2 Ω | |
| DC resistance | Re | 2 x 1.9 Ω | |
| Resonance frequency | Fs | 32 Hz | |
| Mechanical Q factor | Qms | 9.63 | |
| Electrical Q factor | Qes | 0.60 | |
| Total Q factor | Qts | 0.56 | |
| Compliance | Cms | 323 µm/N | |
| Equivalent air volume | Vas | 22 L | |
| Force factor | B*I | 10.3 Tm | |
| Efficiency 1 W / 1 m | SPL | 85 dB | |
| Cone area | Sd | 219 cm² | |
| Moving mass | Mms | 83 g | |
| Cone material | Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer | ||
| Mechanical resistance | Rms | 1.67 kg/s | |
| Voice coil diameter | ø | 50 mm / 2.0″ | |
| Voice coil winding height | 26.4 mm / 1.0″ | ||
| Max. linear excursion | Xmax | +/- 9,2 mm | |
| Outer diameter | ø | 222 mm / 8.7″ | |
| Installation diameter | ø | 191 mm / 7.5″ | |
| Installation depth | 95.6 mm / 3.8″ | ||
